Name (Algorithm frameworks)

Extensible Algorithm Framework

Starting in version 6.0.8.0, Delphix has introduced a builtin Extensible Name Algorithm Framework, co-existing with the legacy FIRST NAME SL and LAST NAME SL ones. Name Framework provides masking functionality for String type input. It's based on Secure Lookup mechanism, and includes additional configuration flags making it more flexible and robust.

Similar to Secure Lookup it creates masking results which are deterministic (i.e. the same algorithm with the same configuration and security key will provide the same result for the same input) and not unique. So it you are looking for the framework whose algorithm(s) will provide a unique masking results you should consider using other frameworks (for example Character Mapping).

The new framework uses SHA256 hashing method and allows case configurations for input and output (i.e. masked) values. It also allows filtering accents, configuring the maximum length of the masked value. If input name is a multi-word string it might contain particles, related to the name. By particles we consider any prefixes, suffixes, titles, etc. The new framework allows configuring which particles to be removed, and which to be preserved.

Creating a Name Algorithm via UI

In the upper right-hand corner of the Algorithm tab, click Add Algorithm.

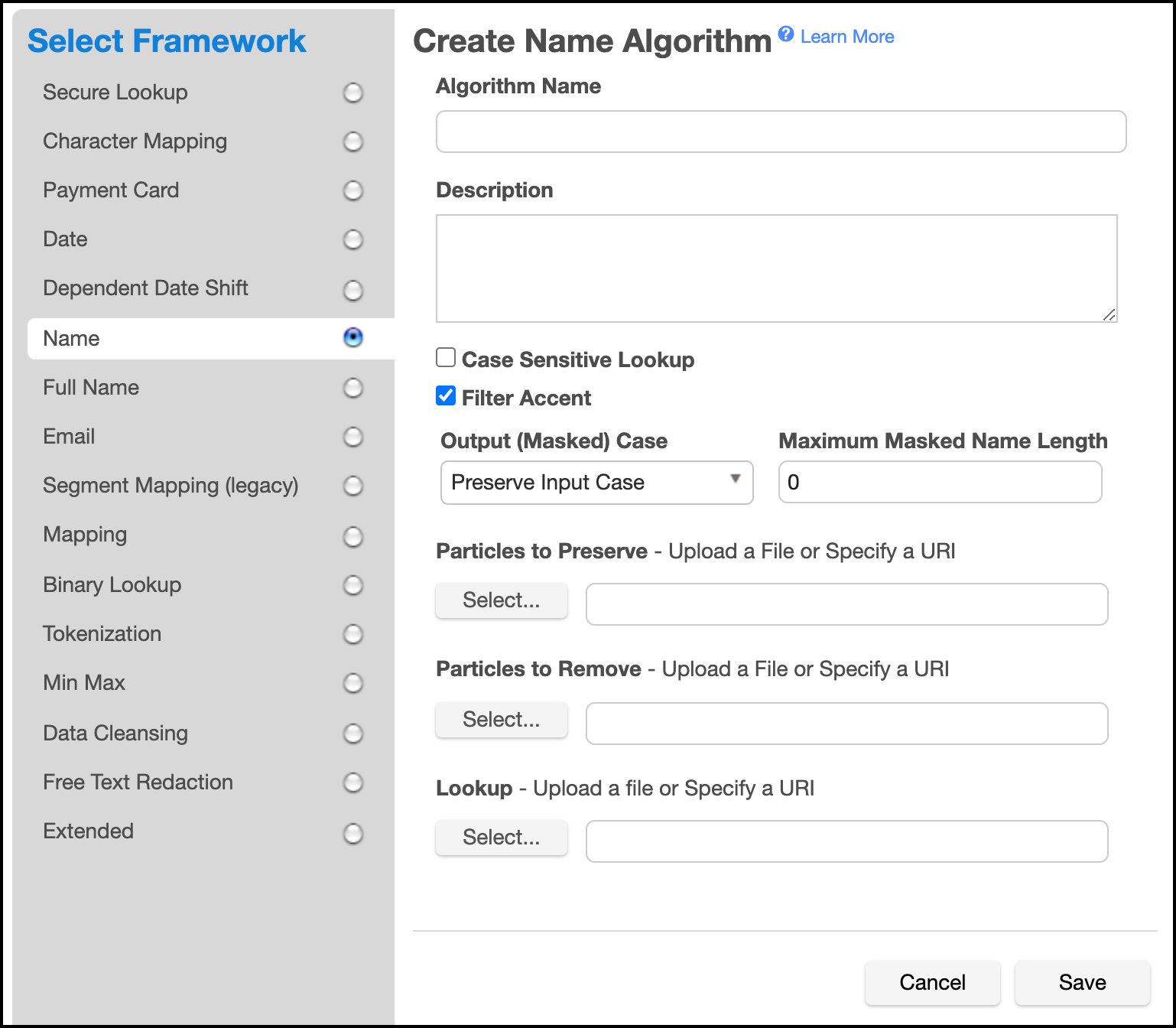

Choose Name Framework. The Create Name Algorithm pane appears.
Enter an Algorithm Name. (Required)

Info

This MUST be unique on the Masking Engine.

Enter a Description. (Optional)
Choose the Case Sensitive Lookup configuration. (Optional. Boolean. Default is false) If Case Sensitive Lookupbox is marked than the same input of different cases will be masked to the different values. For example:
CODE
```
Peter -> John
peter -> Andrew
```
Otherwise it will be masked to the same values, for example:
CODE
```
Peter -> John
peter -> John
```
Choose the Filter Accent configuration. (Optional. Boolean. Default is true) If Filter Accent box is marked than the similar input with and without accented symbols will be masked to the same values. For example:
CODE
```
Adrián -> John
Adrian -> John
```
Otherwise it will be masked to the different values, for example:
CODE
```
Adrián -> John
Adrian -> Peter
```
Choose the Output (Masked) Case configuration. (Optional. Enum. Default is Preserve Input Case) It is explained with the examples in the information popup window, which may be opened by clicking on the blue "? Learn More"sign on the above Create SL Algorithm window. The Name Framework pop-up window displays the following text.

Info

This is the framework to cover the sections where it is required to mask string with deterministic and not unique masking results

Framework Options:

Output (Masked) case:

Preserve Lookup File Case - keep masked value as found in the Lookup File.
Preserve Input Case (Default) -check the input case, which can be one of the following three:
- All uppercase - in that case force whole masked value to uppercase
- All lowercase - in that case force whole masked value to lowercase
- Mixed (if at least 1 character case is different from others) - in that case keep masked value as found in the Lookup File
Force all Uppercase - forces whole masked value to uppercase
Force all lowercase - forces whole masked value to lowercase

Maximum Masked Name Length: Max number of characters or length of masked output string. default is 0., which means unlimited.

Case Sensitive Lookup: A flag to configure if input value case should be considered for Lookup match or not. default is off/false.

Filter Accent: A flag to configure if accent character in input should be considered for Lookup match or not. default is on/true.

Particles to Preserve (Optional): A file with list of words those should be preserved while masking. ex, "Mr.","Mrs.","Sir" etc.

Particles to Remove (Optional): A file with list of words those should be removed while masking. ex, "Mr.","Mrs.","Sir" etc.

Lookup File (Required): A file with list of values for masking.

Choose the Maximum Masked Name Lengthconfiguration. (Optional. Integer. Default is 0) This number should be >= 0 (i.e. not negative). That's the maximum number of characters masked result should fit. I.e. masked result is trimmed to that length. Value 0 means length is unlimited.

Info:

We're also trying to detect the length of the destination field. Some Data Sources provide that value, while others don't. For example: if Data Source provides value 10 for the destination column length and current configuration field is set to 0 or any value longer than 10 - the shortest value wins, i.e. in this example masked result would be trimmed to 10 characters.

Warning:

Some UTF-8 characters might take 2 bytes. If lookup file contains those characters - the trimmed result might be not as expected, since we trim by the number of characters and not number of bytes. There is a bug open for that mismatch.

Specify a Particles to PreserveFile. (Optional. Locally chosen file, or a FileReference) Contains particles to be preserved. I.e. those particles are not masked. For example if file contains particle "von" and "Froum" is masked to "Smith" than
CODE
```
von Froum -> von Smith
```
Specify a Particles to RemoveFile. (Optional. Locally chosen file, or a FileReference) Contains particles to be removed. Those particles are removed prior to masking, i.e. they do not affect masking result. For example if file contains particle "von" and "Froum" is masked to "Smith" than
CODE
```
von Froum -> Smith
Froum -> Smith
```

Info

If particle is found in both "Preserve" and "Remove" files - it will be removed.

Specify a Lookup File. (Required. Locally chosen file, or a FileReference)
This file is a single list of values. It does not require a header. Every line of the Lookup File might be used as a masked value. The Lookup File must be ASCII or UTF-8 encoding compatible. The following is sample file content:
CODE
```
Ann
Marie
Tomas
Ann-Marie
Basil
Mark
```
When you are finished, click Save.

For information on creating Name algorithms through the API, see API Calls for Creating Algorithms - Name.
